Fits up to 4 road bikes or standard mountain bikes and up to 3 adults downhill type bikes. Fitting depends on the frame shape, fork size and weight of the bikes.
- Max number of bikes: 4
- Fits bolt on ISO 50mm tow ball
- Fits Euro swan neck tow ball
- For detachable tow ball: see Buffalo H
- Dimensions (width x depth): 34 x 23 cm
- (measured from the centre of the tow ball mount to the outside edge of the number plate holder).
- Dimensions between Prongs: inside 247 mm, outside 310 mm
- Dimensions (folded): 86 x 34 x 30 cm
- Weight: 9.8 kg
- Max load capacity: 60 kg
- Max weight per bike: 15 kg

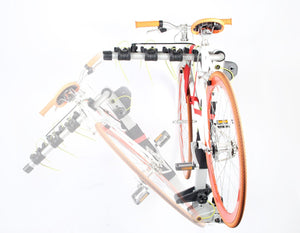

- Tilts for boot access
- Folds for storage

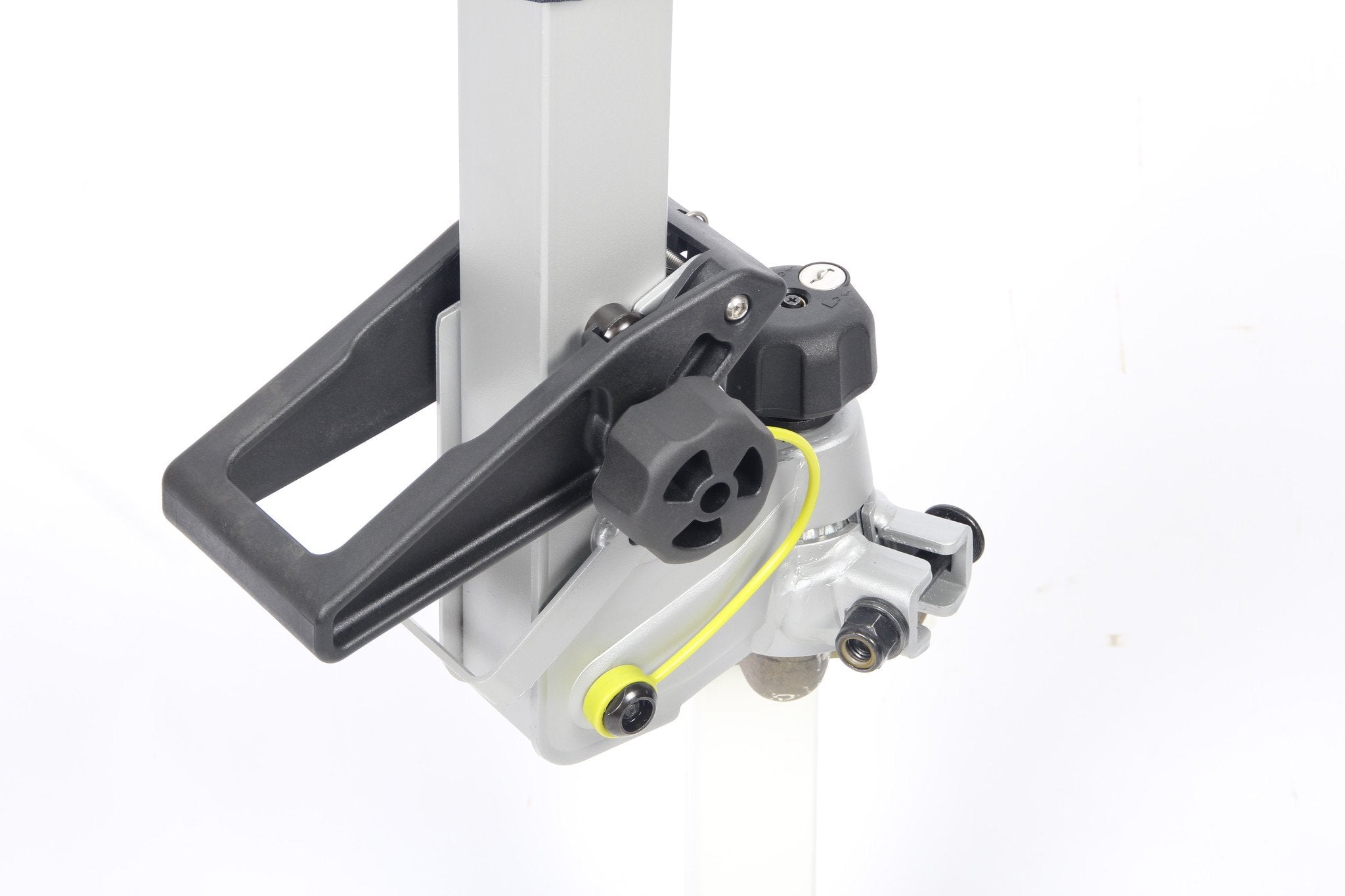

- Bike carrier to tow ball lock on knob
- Bike carrier to bike lock cable
The maximum permitted load you can carry is also determined by the tow bar nose weight; you will need to check you don‰۪t exceed this before using any tow ball mounted bike carrier.
Requires 65mm clearance from centre of tow ball to rear of vehicle.
